(1). Slot size (mm): 0.10,0.15,0.2,0.25,0.30-3mm
(2). Lengths: 3-12m
(3). Grades: Different grades suitable for tube well depths up
to 300ft,600ft,900ft,and 1500ft.
(4). Material: Low Carbon Galvanized Steel (LCG) and
Stainless Steel (SS-304) or can be made according to the customers requirements
(5).Diameter: ranging from 15 to 275mm
(6). End Connection: Plain beveled ends for butt welding or threaded.
(7). Open area: up to 60%

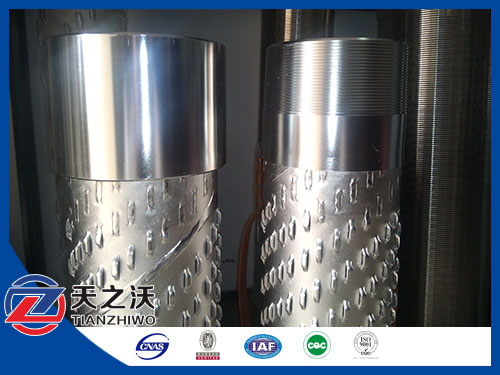

1.Its material is stainless steel, the formation is special bridge design,
it use steel punching technology, and we use the high advanced
machine to make the bridge slot.
2.The slot can change according to the customers' requirement,
the design can efficiently control the sand and the gravel when making the wells .
3.The advantage of the screen is light, cheap and easily operating.
4.Meanwhile, our company can offer a whole set of service,
such as the related process, the solution of the related technology and so on.
