1.Bridge slotted screen a type of well screen with vertical slots that are formed protruding
bridges that are pushed outward from the well casing.

2.The sand and gravel can not easily block the slot because of the special bridge design.

3.It has great mechanical strength and water entering capacity.

4.We use CNC to punch, so the slot can change as your requirements.

5.In order to give customers more convenience, we can offer any diameter screens.

6.We also offer galvanized ones to prolong the operational life.

Technical Data

Diameter  (mm)	146	159		219		273			325			377			426			529
ID	130	140	138	200	198	254	250	246	305	300	297	357	350	346	406	400	398	502	500	498
Thickness	5	5	6	5	6	5	6	8	5	6	8	5	6	8	5	6	8	6	7	8
Coupling OD	146	160	162	220	226	274	278	278	325	328	329	377	378	379	426	428	432	529	530	531


We can provided technical support and produce the pipe as customers' request.

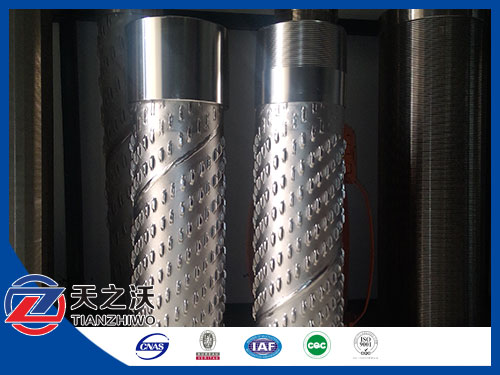

Application of Stainless Steel Spiral Bridge Slotted Screen,

Suitable for hydrology, geology, engineering geology, chemical engineering geology, geothermal air conditioning, water source development, farmland and the urban water supply various industries such as construction construction.

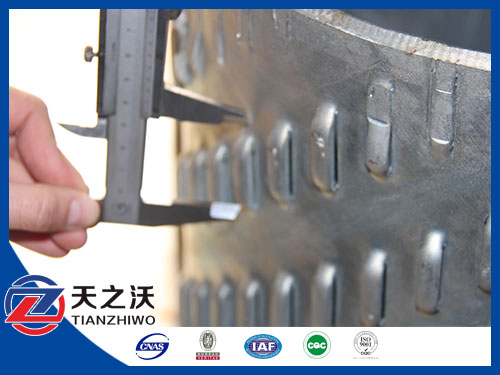

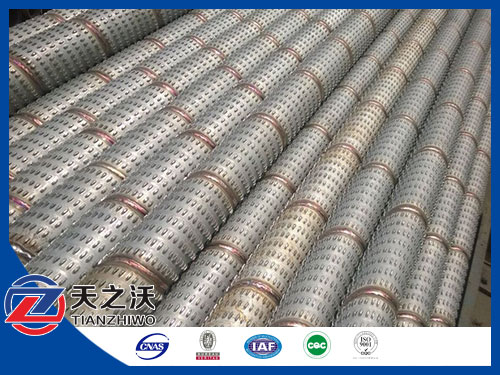

Photo shows




If you are interested in our product, please contact us, and for more information.
