Diameter:
Material:
Slot:
End Connection:
thickness:

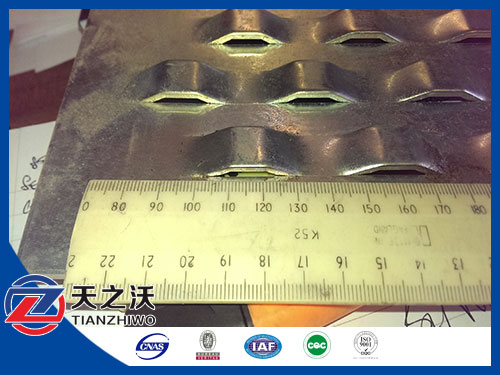

bridge type slotted pipe screen is a type of well screen with vertical slots that are formed by protruding "bridges” that are pushed outward from the well casing.
The slots of this kind of screen are punched precisely in a flat sheet which then is rolled into a pipe.
The sand and gravel can not easily block the slot because of the special bridge design.
Technical Parameters of bridge type slotted pipe screen :
|
Diameter (mm) |
146 |
159 |
219 |
273 |
325 |
377 |
426 |
529 |
|||||||||||||
|
ID |
130 |
140 |
138 |
200 |
198 |
254 |
250 |
246 |
305 |
300 |
297 |
357 |
350 |
346 |
406 |
400 |
398 |
502 |
500 |
498 |
|
|
Thickness |
5 |
5 |
6 |
5 |
6 |
5 |
6 |
8 |
5 |
6 |
8 |
5 |
6 |
8 |
5 |
6 |
8 |
6 |
7 |
8 |
|
|
Coupling OD |
146 |
160 |
162 |
220 |
226 |
274 |
278 |
278 |
325 |
328 |
329 |
377 |
378 |
379 |
426 |
428 |
432 |
529 |
530 |
531 |
|
bridge type slotted pipe screen suitable for hydrology, geology, engineering geology, chemical engineering geology, geothermal air conditioning, foundation precipitation, water source development, farmland and the urban water supply various industries such as construction construction.
