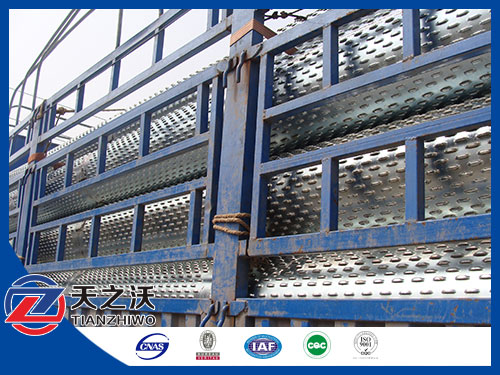

1.Bridge slotted screen a type of well screen with vertical slots that are formed protruding bridges
that are pushed outward from the well casing.

2.The sand and gravel can not easily block the slot because of the special bridge design.

3.It has great mechanical strength and water entering capacity.

4.We use CNC to punch, so the slot can change as your requirements.

Tag:Bridge slot well screen

Technical Data of Bridge slotted screen

Diameter (mm)	146	159		219		273			325			377			426			529
ID	130	140	138	200	198	254	250	246	305	300	297	357	350	346	406	400	398	502	500	498
Thickness	5	5	6	5	6	5	6	8	5	6	8	5	6	8	5	6	8	6	7	8
Coupling OD	146	160	162	220	226	274	278	278	325	328	329	377	378	379	426	428	432	529	530	531


We can provided technical support and produce the pipe as customers' request.

1.Abrasive & Ceramics: alumina, quartz sand, slurry, atomizing soil particles.

2. Chemical: resin sand, pigment, washing powder, micro powder, paint, soda ash, lemon powder,rubber and plastics

3. Food: sugar, salt, soda, MSG (mono sodium glutamate), milk powder, soy-bean milk, yeast, juice, soy sauce, vinegar, etc

4. Paper Making: coating, coated slurry, black-and-white liquid, waste liquor, papermaking liquid,waste water recycle. coal scraper conveyor.

5. Metallurgy: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder etc




If  interested,pls contact:
