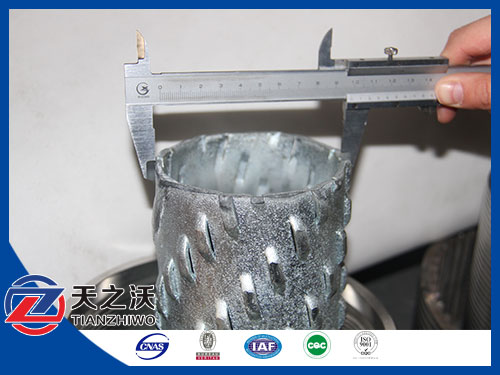

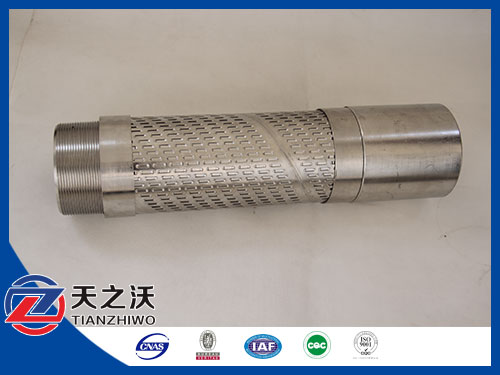

Bridge slot screens have openings arranged in rows and are staggered to reduce the
negative effect on the screens strength..Typically the slots are punched in
a flat sheet is subsequently rolled into a tube and welded.Its advantages:

1) High strength through resistance to twisting, compressive, and tensile forces
2) A smooth bore that does not impede the passage of probes, tools, ect.

1.Categories of pipes: petroleum casing pipe, oil pipe, precision.
2. length of pipe (single): ≤15m
3. external diameter of pipe: 50-200mm
4. tube wall thickness: ≤16mm
5.width of slot : (0.10-0.40)mm±0.03mm
6.number of slots: according to order.
7.Distribution types of slots: parallel, crisscross, spiral.
8.distance of slots: according to order.

(1). Slot size (mm): 0.10,0.15,0.2,0.25,0.30-3mm
(2). Lengths: 3-12m
(3). Grades: Different grades suitable for tube well depths up to 300ft,600ft,900ft,and 1500ft.
(4). Material: Low Carbon Galvanized Steel (LCG) and Stainless Steel
(SS-304) or can be made according to the customers requirements
