Vee Wire Johnson Screen Pipes consists of wedge-shape profile wire and the longitudinal support rods.
each intersecting point of these wires is fusion welded.so water well screen has sturdy constriction and good mechanical property.
the wedge-shape section plane can avoid blockage,and make sure of the unimpeded water.
the consecutive slot have more open area,and water well screen can reduce the speed of the water entering to aviod the sand entering the screen under the great pressure,
so wedge wire water well screen pipes can filter sand better.meanwhile ,the slot can change according to the real condition of the earth.
Quick Details
|
Place of Origin: |
China |
Brand Name: |
TIANZHIWO |
Model Number: |
6INCH |
|
Usage: |
Solid/Liquid Seperation |
Type: |
Oil Pipe |
Material: |
Low Carbon ,Low Carbon Galvanized |
|
Hole Shape: |
Round |
Filter Rating: |
up to 60% |
Thickness: |
1.5-6mm |
|
Length: |
50mm-6000mm |
Width: |
0.02,0.025,0.03,0.04,0.05,0.06,0.08,0.10,0.15,0.2,0.25,0.30-35 |
Product Name: |
Deep well strainer pipe/water well screen tube/johnson screen |
|
Technique: |
Hot Rolled,Welded Mesh |
Wire Shape: |
' V ' type wire |
End Connection: |
normally or as required |
|
Standard: |
ISO |
Secondary Or Not: |
Non-secondary |
Weave Style: |
welded |
|
Outer Diameter: |
25 - 800 mm |
Surface Treatment: |
as required |
Grade: |
10#,20#,45#,16Mn,A106(B,C),A135... |

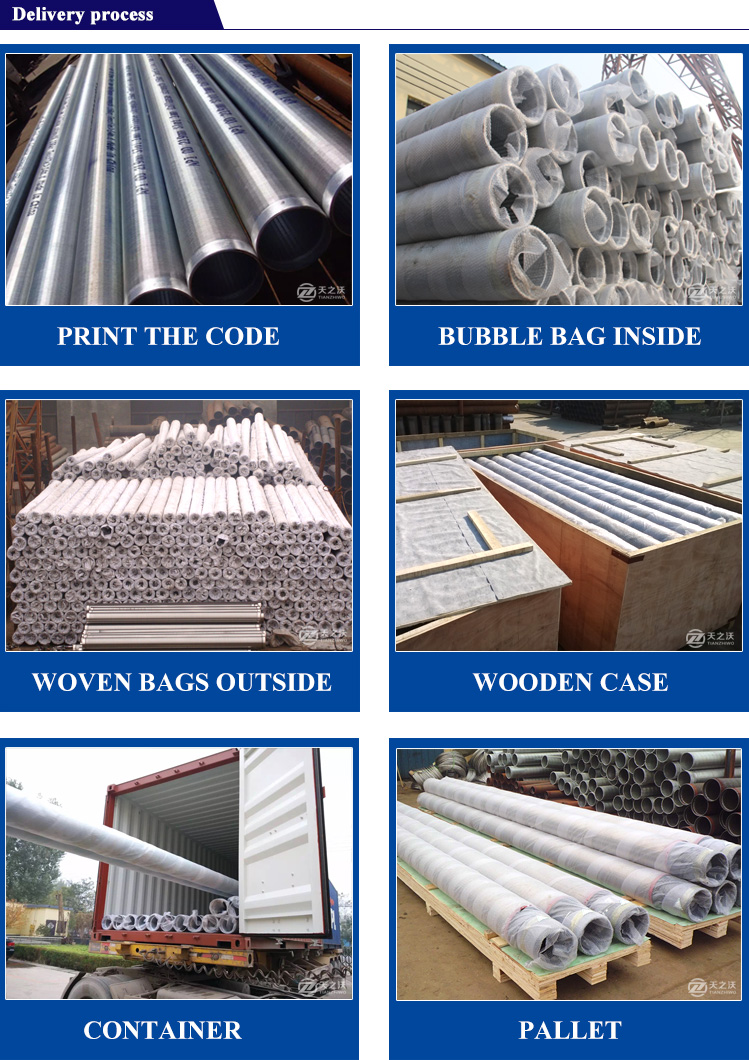

Packaging & Delivery
|
Packaging Details: |
With a plastic film winding and then packed in wooden cases, boxes lined with waterproof material. |
|
Delivery Detail: |
Shipped in 25 days after payment |
Vee Wire Johnson Screen Pipes used for industrial filtration, water intake, water treatment, water well, general industry, vacuum technology, hydrocarbon processing and oil and gas industry.
