1.FACTORY MAINLY MATERIAL |
|||||||||
stainless steel 304 / 304L/316 / 316L,low carbon steel |
|||||||||

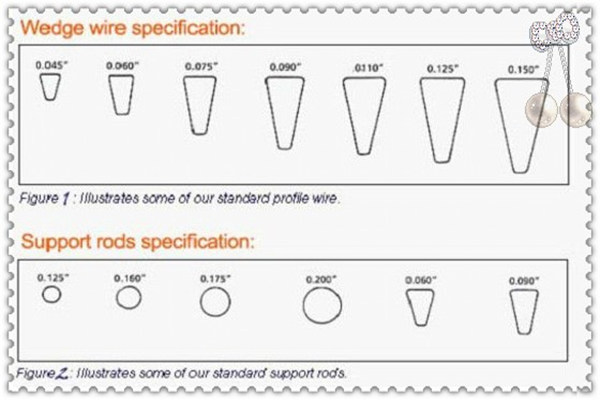

2.PROFILE WIRE (MM) |
|||||||||
width |
|
1.5 |
2.0 |
2.2 |
3.0 |
3.2 |
3.5 |
|
|
height |
|
2.0 |
3 |
3.5 |
5 |
6 |
6.8 |
|
|
factory mainly size:1.5*2; 2*3 |
|||||||||
producing as per customer's requirements |
|||||||||
3.SUPPORT ROD (MM) |
|||||||||
width |
|
1.5 |
2.0 |
2.2 |
3.0 |
3.2 |
3.5 |
|
|
height |
|
2.0 |
3 |
3.5 |
5 |
6 |
6.8 |
|
|
factory mainly size: 2*3; 2.2*3.5; 3*5; 3.2*6 |
|||||||||
producing as per customer's requirements |
|||||||||
support rod quantity as per customer's requirements |
|||||||||

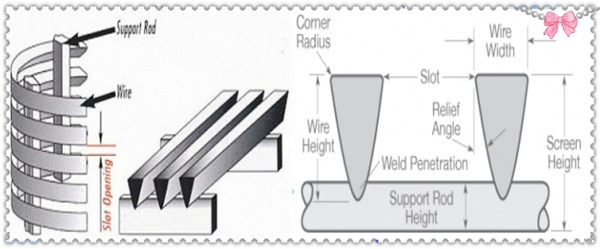

4.SLOT GAUGE :Minimum : 0.05mm (0.05-2.5mm) |
|||||||||
5.OUTSIDE DIAMETER ; Minimum:30mm (29-600mm) |
|||||||||
6.LENGTH OF WEDGE WIRE SCREEN |
|||||||||
producing as per customer's requirements |
|||||||||
7.GOODS CHARACTER: |
|||||||||
1.)wedge wire screen style isn't easy to be locked |
|||||||||
2.)due to the different pressure between inside from outside,it could be very easily to clean the plugging material. |
|||||||||
3.)we are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strength and durability |
|||||||||
4.) we have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles . |
|||||||||
5.) choose our products styles, we supply drawing, after confirming the sample , producing in large. |
|||||||||
8.GOODS USAGES: |
|||||||||
1.) widely used in various kinds of medium filtering |
|||||||||
2.) as the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment; |
|||||||||
3.) the petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol; |
|||||||||
4.) the organic solution recycling filter |
Quick Details
Standard: |
GB, GB/T 9711.1-1997 |
Grade: |
10#-45#, Q195-Q345, 10#, 20#, Q195, Q215, Q235, Q345 |
Thickness: |
3 - 12 mm |
Section Shape: |
Round |
Outer Diameter: |
30 - 600 mm |
Place of Origin: |
Henan, China (Mainland) |
Secondary Or Not: |
Non-secondary |
Application: |
Fluid Pipe |
Technique: |
ERW |
Certification: |
GB |
Surface Treatment: |
polish, Painting or Galvanized or as client require |
Special Pipe: |
Thick Wall Pipe |
Alloy Or Not: |
Non-alloy |
Brand: |
TIANZHIWO |
Material: |
Stainless steel, Low Carbon steel wire |
Filter Rating: |
According to the open area |
Unit Length: |
Up to 6m or as clients' require |
Slot Size: |
0.1-6.0mm |
End Connection: |
STC,LTC,BTC thread coupling,flanged end,welded collar |
Steel Types: |
Stainless steel 304,304L,316,316L or low carbon steel |
Wire wrap size: |
1.5mm*2mm ,2mm*3mm ,2.2mm*3.5mm ,3mm* 5mm ,3.2mm*6mm,3.5mm*6.8mm |
Support rods shape: |
Vee shape or round shape |
Packaging & Delivery
Packaging Details: |
Single with bubble bag and then in wooden case(fumigation certificate). |
Delivery Detail: |
Within 15 days after receiving your advance payment |
SS304 V Wedge Wire Water Well Pipe Screen Filter is widely used in beverage/ beer filtration, papermaking industry, industrial waste water treatment, oil, water desalination, etc.
