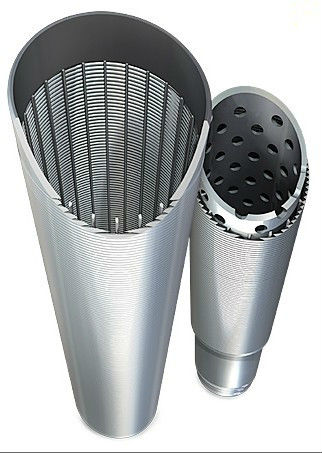

Continuous Slot V-shape Wire Johnson Screen Pipe consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded,so it has sturdy constriction and good mechanical property.

The V-shape section plane can avoid blockage,and make sure of the unimpeded water.

The consecutive slot have more open area,and V-shape Wire Johnson Screen Pipe can reduce the speed of the water entering to aviod the sand entering the screen under the great pressure,so it can filter sand better.

Meanwhile,the specifiction of products can change according to the real condition of the earth.

Quick Details of Continuous Slot V-shape Wire Johnson Screen Pipe

• Standard: AISI, ASTM, GB, DIN

• Place of Origin: Henan, China (Mainland)

• Brand Name: TIANZHIWO

• Model Number: 8inch

• Type: Welded

• Steel Grade: 300 Series

• Application: Oil and water filter pipe

• Certification: ISO,CE,SGS,CIQ,

• Welding Line Type: ERW

• Thickness: 5-12mm

• Outer Diameter: 33--600mm

• Diameter: 33--600mm

• Minimum slot: 0.05mm

• Supply Capacity: 8000meters per month

• Function: Water Filter

• Structure: Cartridge Filter

• Material: Stainless Steel wire

• Slot size: 0.2-6mm or produce as client require

• wire size: 1.5*2mm,2.2*3.5,3*5,3.2*4 and so on

• Rod size: 2*3*22,3.8*32,3.8*42,3.8,5 and so on
