Diameter:
Material:
Slot:
End Connection:
thickness:

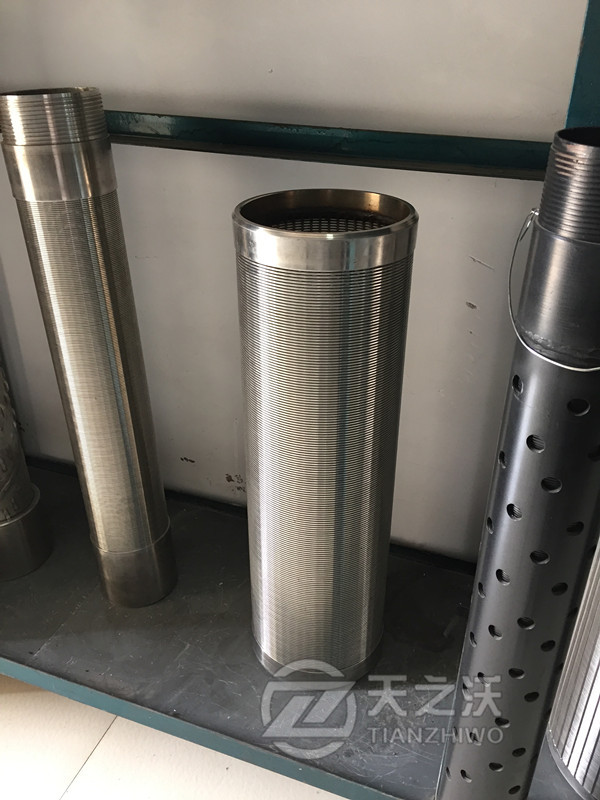

Features of Johnson type screen casing pipe,
1) Johnson type screen casing pipe are considered the standard of the industry, combining proven performance with durability
2) Low-carbon, galvanized or stainless steel construction
3) Provide optimum well development and access to the aquifer
4) Large open area:.
5) Water enters at lower velocity, reducing screen surface erosion and encrustation
6) Designed and constructed to operate under different depth conditions, with the optimum strength / open area ratio
7) Other installation depth designs available upon requests
8) Non clogging: is self-cleaning and ensures an uninterrupted flow. Sand grains make only two point contact and don’t wedge in the screen’s inwardly enlarging slot.
|
SIZE |
O.D |
SLOT |
LENGTH |
COLLAPSE |
TENSILE |
WRAP(thick*deep) |
RODS |
|
4 |
117 |
0.040 |
3 |
395 |
6 |
2.2*3.0 |
3.8MM/22 |
|
4 |
114.3 |
0.040 |
3 |
395 |
6 |
2.3*3.0 |
3.8MM/22 |
|
6 |
168.3 |
0.040 |
3 |
252 |
8 |
2.3*3.5 |
3.8MM/32 |
|
8 |
219.1 |
0.010 |
3 |
399 |
10.5 |
3.0*5.0 |
3.8MM/48 |
|
8 |
219.1 |
0.020 |
3 |
370 |
10.5 |
3.0*5.0 |
3.8MM/48 |
|
8 |
219.1 |
0.040 |
3 |
323 |
10.5 |
3.0*5.0 |
3.8MM/48 |
|
10 |
273.1 |
0.010 |
3 |
206 |
11 |
3.0*5.0 |
3.8MM/50 |
|
10 |
273.1 |
0.020 |
3 |
191 |
11 |
3.0*5.0 |
3.8MM/50 |
|
10 |
273.1 |
0.040 |
3 |
167 |
11 |
3.0*5.0 |
3.8MM/50
|
Quick Details of Johnson type screen casing pipe,
|
Standard: |
API, GB, API 5CT, GB/T 9711.1-1997 |
Grade: |
A Grade |
Slot open |
0.5,0.75,1.0,ect |
|
Section Shape: |
Round |
Outer Diameter: |
30 - 1200 mm |
Place of Origin: |
Henan, China (Mainland) |
|
Secondary Or Not: |
Non-secondary |
Application: |
Drill Pipe |
Technique: |
ERW |
|
Certification: |
CIQ/CE/CO/SGS |
Surface Treatment: |
Galvanized |
Special Pipe: |
wire filter pipe |
|
Alloy Or Not: |
Non-alloy |
length: |
less than 5.8m |
Material:: |
carbon steel or stainless steel wire |
|
Filter Rating:: |
80% |
Type:: |
wire wrapped |
Product: |
Johnson type screen casing pipe |
|
Brand: |
TIANZHIWO |
Support round shape: |
vee shape or round shape |
Structure: |
Cartridge Filter |
Packaging & Delivery
|
Packaging Details: |
It's up to the customers' requests or the contract items signed by the cooperation partners completely aiming at satisfying the clients' requirements |
|
Delivery Detail: |
15-25 workdays after prepayment |
Johnson type screen casing pipe used for en vertical water .
Service:
Quick action, Prompt reply, 24hours/7days Service, To be your Reliable Partner.
FAQ:
1. Diameter: determined by the borehole diameter and pump size.
2. Material: galvanized carbon steel or stainless steel wire as usual
3. Slot size: as per the size of filter medium and gravels.
4. Collapse strength and tensile strength: decided by the depth of screen installed.
5. Length: 1-6m or other required size. (5.85 meter for 20” container is better )

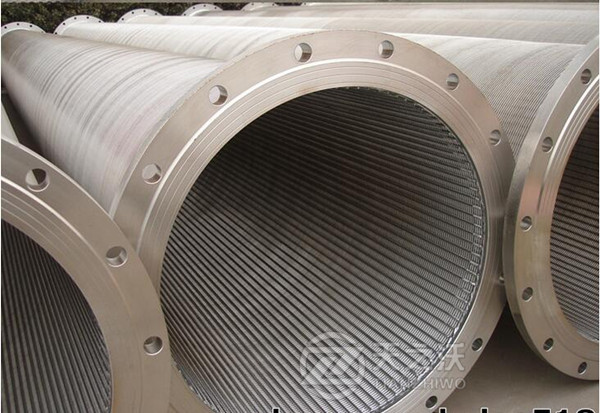

6. End Connection: Plain end or bevel end or API thread LTC,STC,BTC, or flange
