Slot opening for 6 5/8inch AISI 316 Rolled Wire Strainer Johnson are manufactured by spacing successive turns of the outer wire to produce the desired slot size.
All slots should be cleaned and free of burrs and cuttings.

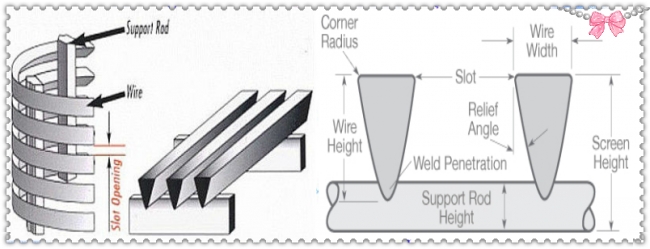

Each slot opening between adjacent wires is V-shaped, from the special shape of wire used to form the screen surface.
The V-shaped openings designed to be non clogging, are narrowest at the outer face and widen inwardly.
Specifications of AISI 316 Rolled Wire Strainer Johnson :
|
SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Weight (ton) |
Wire size (mm) |
RODS (mm) |
|
4 |
117 |
0.040 |
3 |
395 |
6 |
2.2*3.0 |
3.8mm/22 |
|
4 |
114.3 |
0.040 |
3 |
395 |
6 |
2.3*3.0 |
3.8mm/22 |
|
6 |
168.3 |
0.040 |
3 |
252 |
8 |
2.3*3.5 |
3.8mm/32 |
|
8 |
219.1 |
0.010 |
3 |
399 |
10.5 |
3.0*5.0 |
3.8mm/48 |
|
8 |
219.1 |
0.020 |
3 |
370 |
10.5 |
3.0*5.0 |
3.8mm/48 |
|
8 |
219.1 |
0.040 |
3 |
323 |
10.5 |
3.0*5.0 |
3.8mm/48 |
|
10 |
273.1 |
0.010 |
3 |
206 |
11 |
3.0*5.0 |
3.8mm/50 |
|
10 |
273.1 |
0.020 |
3 |
191 |
11 |
3.0*5.0 |
3.8mm/50 |
|
10 |
273.1 |
0.040 |
3 |
167 |
11 |
3.0*5.0 |
3.8mm/50 |
Henan Tianzhiwo Machinery Co., Ltd offers high quality Johnson Screen pipe, water well screen,wedge wire water well screen,V wire water well screen,continuous wedge wire screen ,stainless steel water well screen,water filter and other related products.
Service:
Quick action, Prompt reply, 24hours/7days Service, To be your Reliable Partner.
FAQ:
1.Diameter: determined by the borehole diameter and pump size.
2.Material: galvanized carbon steel or stainless steel wire as usual
3.Slot size: as per the size of filter medium and gravels.
4.Collapse strength and tensile strength: decided by the depth of screen installed.
5. Length: 1-6m or other required size. (5.85 meter for 20” container is better )
6. End Connection: Plain end or bevel end or API thread LTC,STC,BTC, or flange
