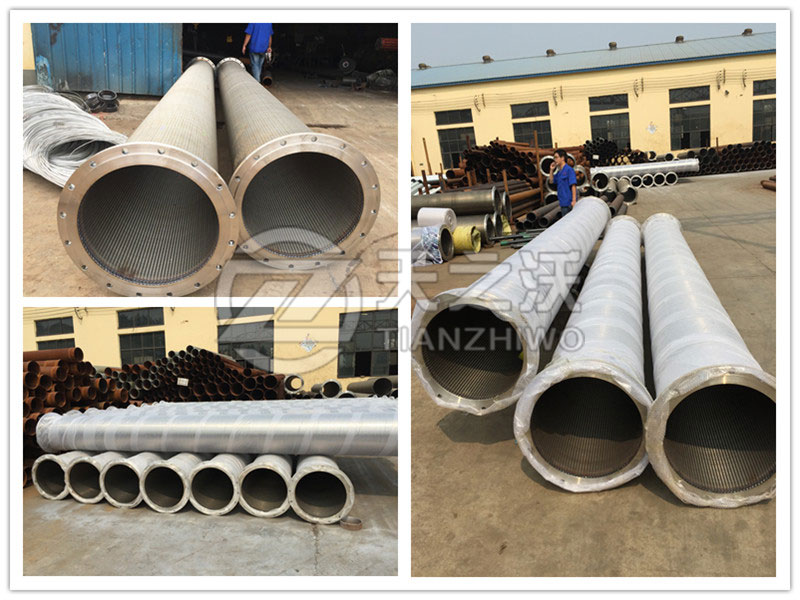

Johnson Continuous screen tube for irrigation water well drilling
Johnson Continuous screen tube consist of V-shape profile wire and the longitudinal support rods. each intersecting point of these wires is fusion welded.
So Johnson screen pipe has sturdy constriction and good mechanical property.
The V-shape section plane can avoid blockage, and make sure of the unimpeded water.
The continuous slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so Johnson screen pipe can filter sand better. Meanwhile ,the slot size can be changed according to the real condition of the earth.
Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface.
The V-shaped opening, designed to be non clogging, are narrowest at the outer face and widen inwardly.
Quick Details of Johnson Continuous screen tube
|
Place of Origin: |
Henan, China (Mainland) |
Brand Name: |
TIANZHIWO |
Model Number: |
6inch |
|
Usage: |
Liquid Filter |
Type: |
Filter Elements |
Material: |
Metal, stainless steel |
|
Hole Shape: |
Round |
Filter Rating: |
unequal |
Thickness: |
unequal |
|
Length: |
up to 6m |
Width: |
unequal |
key words |
Johnson Continuous screen tube |
|
Stanard: |
SS 316L |
Od: |
88.9-508mm |
Slot size: |
0.2-6mm or produce as client require |
|
wire size: |
1.5*2--3.5*6.8 |
Rod size: |
2*3*22--5*54 |
Surface treatment: |
galvanized or painting |
|
End connection: |
plain beveled or threaded |
Certification: |
ISO |
Packaging & Delivery
|
Packaging Details: |
Single with bubble bag or wooden case(fumigation certificate). |
|
Delivery Detail: |
15-25 days after down payment |
