Materials : 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel
wire.O.D : 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch.
the slot : 0.1mm-45mmthe wire :2.0mm*30.mm, 3.0mm*4.6mm, 3.0mm*5.0mmthe rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50

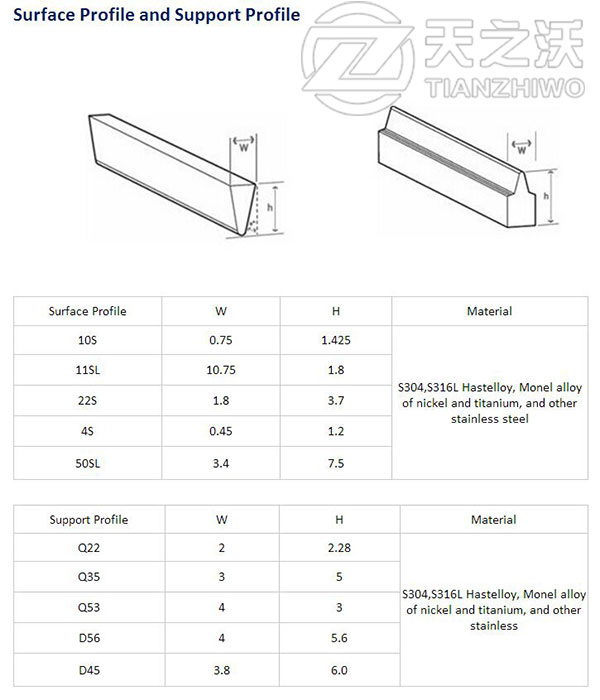

The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire).
Styles of connection: by welding or by threaded male/female coupling.
Standard length: 1m-5.85m
2.The profile wire wraps around internal array of longitudinal support rods.
Each intersecting point of these wires is fusion welded.
3.The profile wire wraps around the support rods over the full length of the screen creating
a continuous slot opening. So the screen can allow water and oil to enter the well freely.
4.it keeps the majority of the sand and gravel out of the well.The length and the thickness
are according to the customers' requirements.
Meanwhile ,our company can offer a whole set of service,such as the related process,
the solution of the related technology and so on.
1.The Johnson Vee Wire Water Well Screen Filter Pipe is composed of rod strips and V shaped wires
through manufacturing on specialized welding machine.
2.The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength,
equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure
