Name:API Standard Continuous-slot Water Well Screen
Material : Low Carbon ,Low Carbon Galvanized steel (LCG),, steel treated with plastic spraying,Stainless Steel ( 304,etc.)
Lengths up to 6 meters.
Diameter ranging from 25 mm to800 mm
End Connection :Plain beveled ends for butt welding or threaded.
1.The continuous-slot well screen is widely used throughout the world for water, oil, and gas wells, and is the
dominant screen type used in the water well industry.

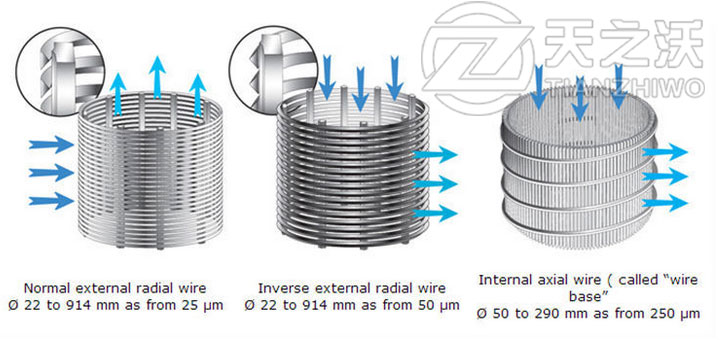

2.TIANZHIWO Continuous-Slot Well Screen is made by winding cold-rolled wire, approximately triangular in cross
section, around a circular array of the longitudinal rods.

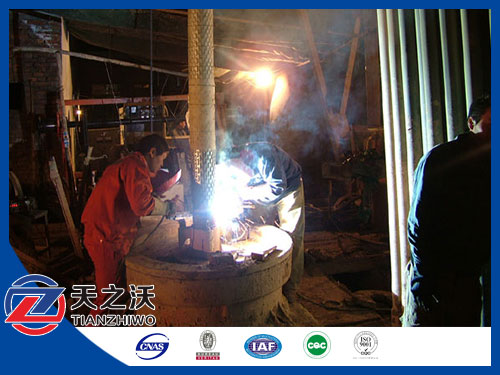

3.The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.
Slot opening for continuous-slot screens are manufactured by spacing successive turns of the outer wire to produce the desired slot size.
