Diameter:
Material:
Slot:
End Connection:
thickness:

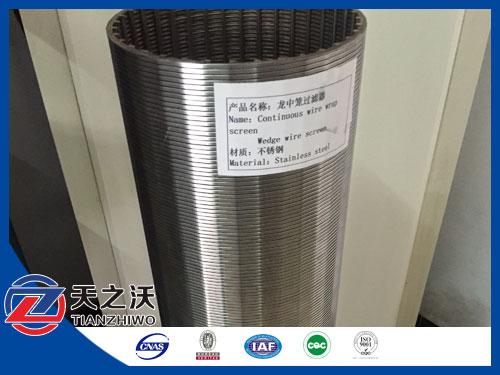

johnson Slotted filter cartridges is made up of rods and warp.
The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).
Spec. of johnson Slotted filter cartridges
|
Screen Size |
Inside Diameter |
Outside Diameter |
OD of Female Threaded End |
||||
|
in |
mm |
In |
mm |
in |
mm |
In |
mm |
|
2 |
51 |
2 |
51 |
25/8 |
67 |
23/4 |
70 |
|
3 |
76 |
3 |
76 |
35/8 |
92 |
33/4 |
95 |
|
4 |
102 |
4 |
102 |
45/8 |
117 |
43/4 |
121 |
|
5 |
127 |
5 |
127 |
55/8 |
143 |
53/4 |
146 |
|
6 |
152 |
6 |
152 |
65/8 |
168 |
7 |
178 |
|
8 |
203 |
8 |
203 |
85/8 |
219 |
91/4 |
235 |
|
10 |
254 |
10 |
254 |
103/4 |
273 |
113/8 |
289 |
|
12 |
305 |
12 |
305 |
123/4 |
324 |
133/8 |
340 |
|
14 |
356 |
131/8 |
333 |
14 |
356 |
— |
— |
|
16 |
406 |
15 |
381 |
16 |
406 |
— |
— |
|
20 |
508 |
18 3/4 |
476 |
20 |
508 |
— |
— |
Slot size (mm):0.10,0.15,0.2,0.25,0.30-3,also achieved upon customer request.
Open area up to 60%.
Material : Low Carbon ,Low Carbon Galvanized steel (LCG),, steel treated with plastic spraying,Stainless Steel( 304,etc.)
Lengths up to 6 meters.
Diameter ranging from 25 mm to800 mm
End Connection :Plain beveled ends for butt welding or threade
