Johnson Screen V-Shaped slot pipe is woven by wraps and rods, of which the rods can be wedged profile wire ( V wire or round shaped wire) the wraps can be v shaped wires.
Different shaped wires and accurate slot made our well screen pipe high Filtration precision .

Specification (support rods):

                      Width(mm): 1.5,2.0,2.3,2.5,3.0,3.3,3.7,4.0,4.5

                      Height(mm): 1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.5,4.7,5.5

                      Round rods : diameter from 2.50mm to 6.0mm

                      Note: other wires and rods available upon request

                      Slot size(mm): 0.05,0.08,0.10,0.15,0.20,0.25,0.30,1.0,2.0,5.0... 45mm also achieved upon request.

                      Diameter(mm):27,50,100,200,500,1000.

                      Length: up to 6 meters.

                      End Connection: welded rings(plain beveled ends for butt welding) or threaded male and female

Johnson Screen V-Shaped slot pipe can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment,
the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

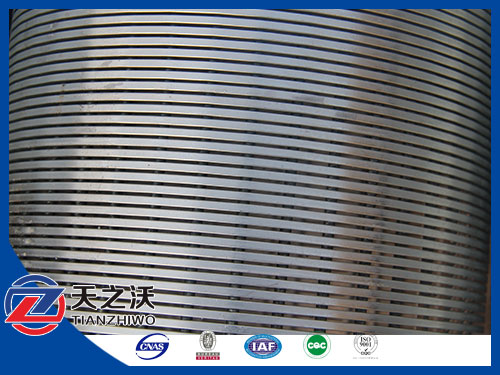

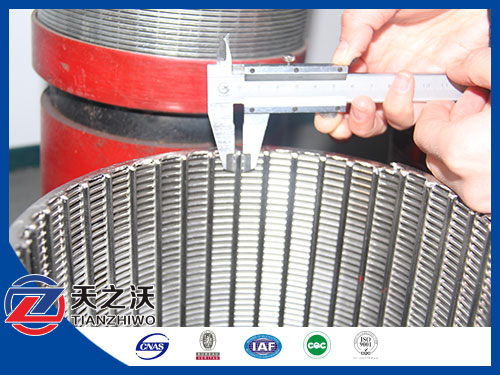

Photo shows ,
