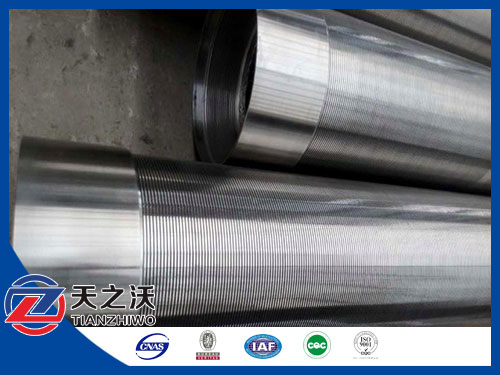

1.Each slot opening of water well screen between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface.
2.The V-shaped opens, designed to be nonclogging, are narrowest at the outer face and widen inwardly.
3.Continuous-slot Johnson deep well screens provide more intake area per unit area of screen surface than any other type.
4.For any given slot size, this type of screen has maximum open area.

Materials :  304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel
wire.O.D : 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch.
the slot  :   0.1mm-45mmthe wire :2.0mm*30.mm, 3.0mm*4.6mm, 3.0mm*5.0mmthe rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50
The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire).
Styles of connection: by welding or by threaded male/female coupling.
Standard length: 1m-5.85m

1. V wire wrap water wellscreen  with high open area are more suitable
for the construction of high-quality water wells, oil wells and gas wells.

2.Low cost operation V wire wrap water well Screen with high open area shall favor
groundwater infiltration. Abundant water shall reduce the water levels down,
thus to save energy consumption.

3. Reduce the abrasion of the pump

4. Extend the life span of wells
