Diameter: Material: Slot: End Connection: thickness:
low carbon steel galvanized screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Henan Tianzhiwo Machinery Co., Ltd Offers high quality Johnson Screen pipe, water well screen,wedge wire water well screen, V wire water well screen,continuous wedge wire screen ,stainless steel water well screen,water filter and other related products.
Specifications of low carbon steel galvanized screen,
Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

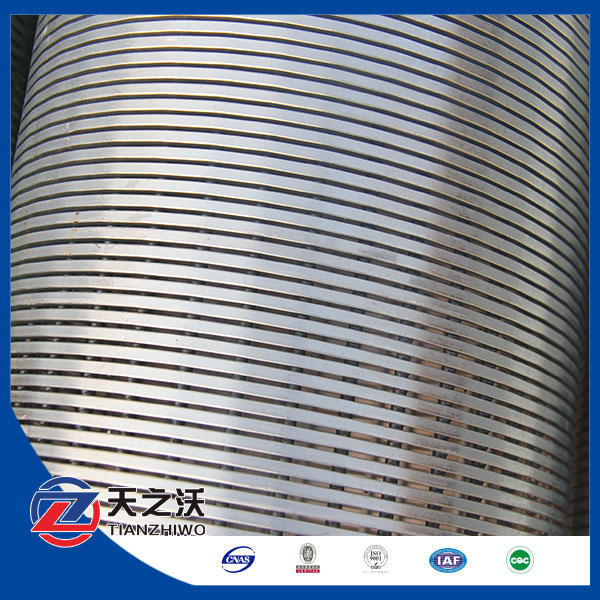

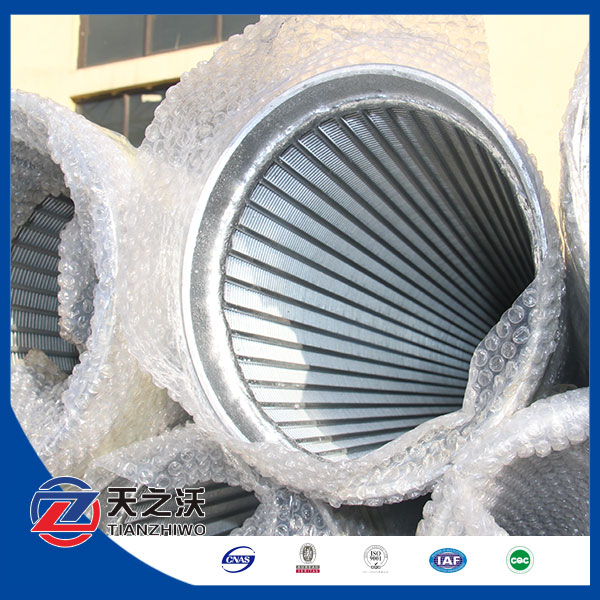

low carbon steel galvanized screen can be usde in many kinds of medium filtering. Photo shows ,
