Diameter: Material: Slot: End Connection: thickness:

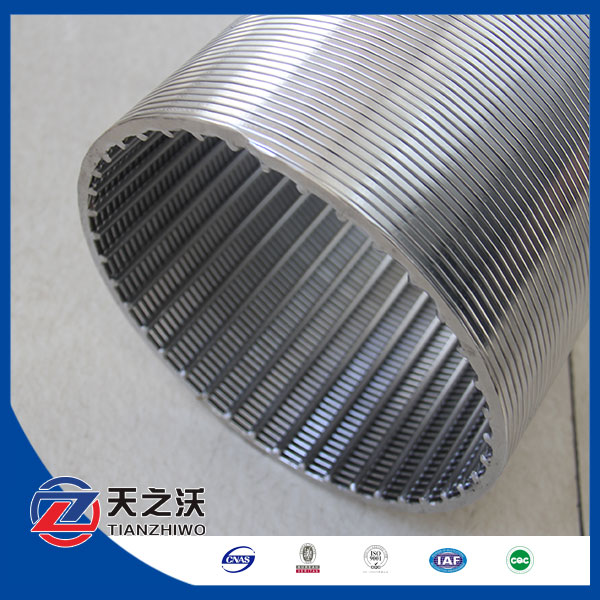

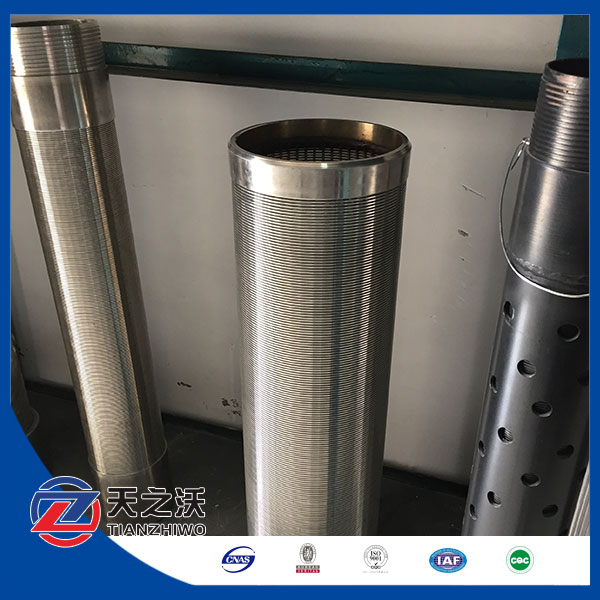

johnson slotted tube are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods.
Characteristics
1.It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.
Quick Details of johnson slotted tube
Place of Origin:
Henan, China (Mainland)
Brand Name:
TIANZHIWO
Model Number:
8inch
Usage:
Liquid Filter
Type:
Filter Cylinder
Material:
low carbon steel and stainless steel wire
Hole Shape:
Round
Filter Rating:
99%
advantage
from direct factory ,and design free
Length:
5.85 meter for container
Width:
159mm
Connection type:
threaded couping and welded ring
Slot:
0.05-2.5mm
service
sample can be sent
surface treatment:
galvanized if you chose the carbon steel material
support rod:
2.6, 2.8, 3.0, 3.8, 4.2, 5, 6.0
Perforated Metal Mesh:
Perforated Metal Mesh
OD:
from 25mm to 600mm
key word:
johnson slotted tube
Packaging & Delivery
Packaging Details:
Generally in wooden and woven bag , but it can also be as customers' requests, not absolutely
Delivery Detail:
10 working days (not contain delivery time) after payment
