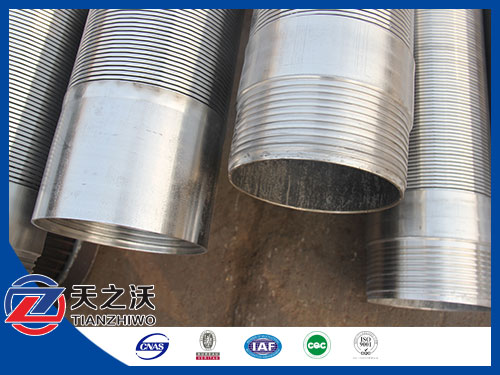

Stainless Steel Johnson Screen used for geothermal well
Diameter:
Material:
Slot:
End Connection:
thickness:
Product Categories
Water well screens
Johnson type screen
Bridge slotted screen
Pre-pack well screen
Stainless steel well screen
Oil well screen
Perforated Pipe
Slotted Liners
Water treatment & Filtration
Wedge wire screen
Industry Filters
Resin Traps
Strainer
Sieve Plate
Filter Nozzle
Well Casing & Accessories
Spiral steel pipe
API casing
Seamless casing pipe
Centralizers
Pup Joints
Reducer
Coupling
Successful Cases
Perforated oil well screen
Johnson wedge wire screen cartridge for industry filtration
Cage type stainless steel wire wrap water well pipe
Contact Us
overseas@xxfilter.com
+86-373-2515856
Add: Filter Industrial Zone,Beihuan Road,Muye District,Xinxiang City,Henan P.R.China
Introduction
Technical Data
Application
Inquiry
Introduction
The
Stainless Steel Johnson Screen
section plane can avoid blockage, and make sure of the unimpeded water.
Further more, the consecutive slot have more open area, and it can reduce the speed of
the water entering to aviod the sand entering the screen under the great pressure, so it can filter sand better
Technical Data
Technical data
No.
(mm)TYPE
OD
(mm)
ID
(mm)
Support wire Number
Filter direction
1
SRD25.4
25.4
18.6
12
FOTI
2
SRD 33
33
24
8
FOTI
3
SRD 37
37
28
8
FOTI
4
SRD 40
40
31
8/10
FOTI/FITO
5
SRD 45
45
36
10/12
FOTI/FITO
6
SRD 48
48
38
12
FOTI/FITO
7
SRD 60
60
51
12
FOTI/FITO
8
SRD 70
70
61
12/18
FOTI/FITO
9
SRD 85
85
76
18
FOTI/FITO
10
SRD 110
110
101
24
FOTI/FITO
11
SRD120
120
111
24
FOTI/FITO
Remarks:
1. Make tubes with different material according to user requirements.
2. Slot should be bigger than 0.020mm and less that 2500mm long.
Application
Johnson water well screen
used for drilling oil well , water well , geothermal well ,
sewage and industrial wastewater disposal plants, food equipment, liquids filtration,cleaning treatment
If interested,pls contact:
Cynthia
Skype:aldfilters
Email:sales03@xxldlq.com
QQ:2537575135
Mob:86-15637366455(whatsapp,viber,wechat)
