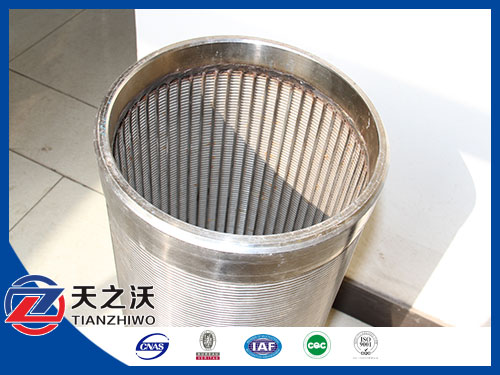

1.Each slot opening of johnson wire wrapped well screen between adjacent wires is V-shaped,
resulting from the special shape of the wire used to form the screen surface.
2.The V-shaped opens, designed to be nonclogging, are narrowest at the outer face and widen inwardly.
3.Continuous-slot Johnson deep well screens provide more intake area per unit area of screen surface than any other type.
4.For any given slot size, this type of screen has maximum open area.v
Place of Origin: Xinxiang Henan, China (Mainland)
Material: Stainless Steel Wire
Type: Welded Mesh
Application: Filters
Weave Style: welded
Wire Diameter: wire:1.5-4.5mm
Technique: Welded Mesh
Model Number: we can design it as the client's request
Brand Name: TIANZHIWO
length: up to 6m
