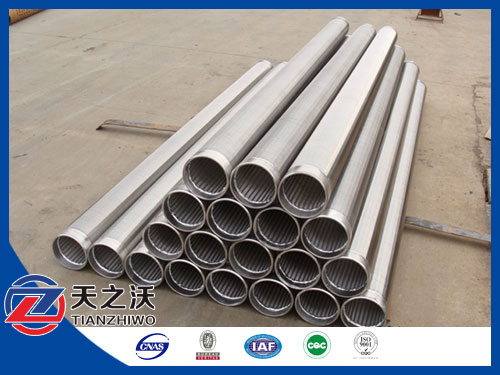

1.Johnson Water well Screen consist of V-shape profile wire and the longitudinal support rods.
Each intersecting point of these wires is fusion welded of water well screen.

2.So it has sturdy constriction and good mechanical property.

3.the V-shape section plane can avoid blockage and make sure of the unimpeded water. the consecutive slot have more open area,
and water well screen  can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure

4.so it can filter sand better. meanwhile ,the slot can change according to the real condition of the earth.

Materials: 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire .
O.D: 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch, 14inch,
16inch,18inch, 20inch
the slot:0.1mm-45mm
the wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm
the rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50
The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire).
Styles of connection: by welding or by threaded male/female coupling.

1.The Johnosn water well screen is a kind of filtered water tubing with the perforation .

2.it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment,
the environmental protection, the sea water transforms into the industrial water and life use
water desalination treatment, running water treatment, water softening treatment, the petroleum industry:
