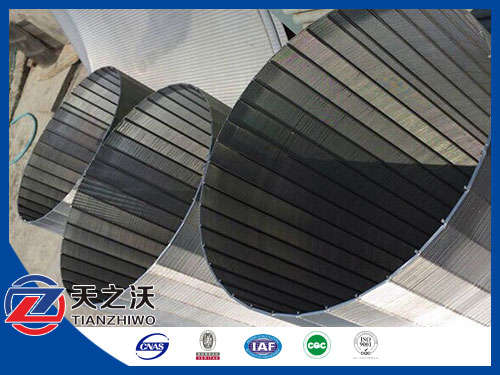

1.The Johnson Screen Tube is made up of rods and warp.
The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire).

2.The Johnson Screen Tube have a structure and high open area, as well as accurate slot dimension.

Specifications of wire and support rods


	Wire Width	Wire Height	Relief Angle	Typical Support Rods
30V	.030"	.06"	10	.125" round
45V	.045"	.09"	10	.125" round
63V	.063"	.11"	13	.156" round
69U	.069"	.17"	8	.075" x 1" bar
93V	.093"	.15"	13	.25" round or .075" bar
125V	.125"	.20"	13	.38" round

Compared with other Ordinary pipes

1. V wire wrap water well screen with high open area are more suitable
for the construction of high-quality water wells, oil wells and gas wells.

2.Low cost operation V wire wrap water well Screen with high open area shall favor
groundwater infiltration. Abundant water shall reduce the water levels down,
thus to save energy consumption.

3. Reduce the abrasion of the pump

4. Extend the life span of wells
