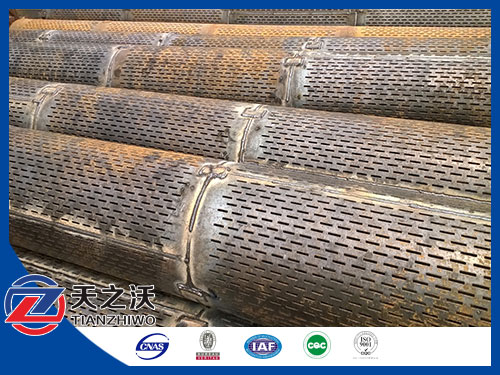

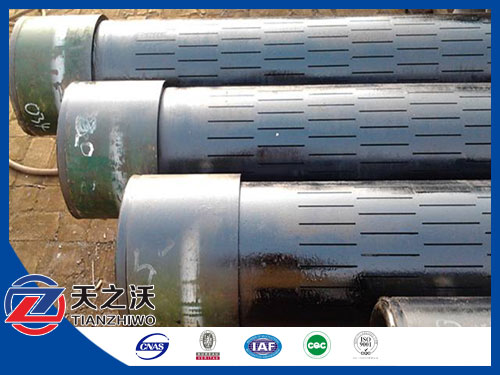

1. The slotted liner is a robust and cost-effective solution for long completions or low productivity wells

2. We offer straight and keystone slot type in the wide range of slotting patterns to create the required open area

Std.Casing				ID mm	Length m	Slot Length mm	Slot No./m	Slot  Width	Slot Tolerance	Valid Filter  Area  cm2/m	Max. Strength     KN
Spec. mm	Thickness mm		Per  Weight Kg/m
60.32		5	6.84	50.3	3	80	200	0.3	±50	48	512.54
73.02		5.5	9.15	62	3	80	240	0.3	±50	57.6	688.55
88.9		6.5	13.22	75.9	3	80	280	0.3	±50	67.2	995.1
101.6		6.5	15.22	88.6	3	80	300	0.3	±50	72	1151.2
114.3		7	18.47	100.3	10	80	320	0.3	±50	76.8	1400.4
127		7.52	22.13	112	10	80	340	0.3	±50	81.6	1673.8
139.7		7.72	25.11	124.3	10	80	360	0.3	±50	86.4	1900.2
		9.17	29.48	121.4	10	80	360	0.3	±50	86.4	2232.4
168.3		8.94	35.09	150.4	10	80	400	0.3	±50	96	2672.95
177.8		8.05	33.68	161.7	10	80	440	0.3	±50	105.6	2559.2
		9.19	38.19	159.4	10	80	440	0.3	±50	105.6	2940.7

Application: oil drilling, water treatment, forages
Advantages: high quality, competitive price, fast delivery, first class technology
Materials: Stainless Steel or others, or as the customers requirements
Low-Carbon, Galvanized or Stainless Steel construction.
Provide optimum well development and access to the aquifer
Large open area
