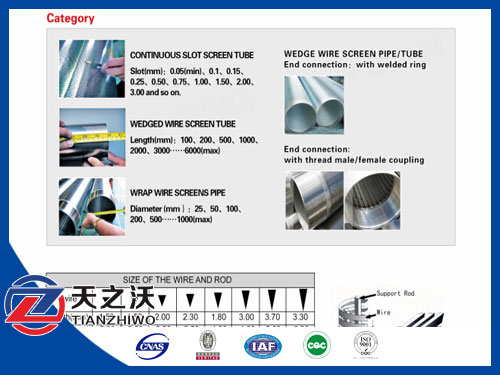

Product Description for Water Well Sand Screen

1.Each slot opening of Water Well Sand Screen between adjacent wires is V-shaped, resulting
from the special shape of the wire used to form the screen surface.
2.The V-shaped opens, designed to be nonclogging, are narrowest at the outer face and widen inwardly.
3.Continuous-slot Johnson deep well screens provide more intake area per unit area of screen surface than any other type.
4.For any given slot size, this type of screen has maximum open area.

Screen Size		Inside Diameter		Outside Diameter		OD of Female  Threaded End
in	mm	In	mm	in	mm	In	mm
2	51	2	51	25/8	67	23/4	70
3	76	3	76	35/8	92	33/4	95
4	102	4	102	45/8	117	43/4	121
5	127	5	127	55/8	143	53/4	146
6	152	6	152	65/8	168	7	178
8	203	8	203	85/8	219	91/4	235
10	254	10	254	103/4	273	113/8	289
12	305	12	305	123/4	324	133/8	340
14	356	131/8	333	14	356	—	—
16	406	15	381	16	406	—	—
20	508	18 3/4	476	20	508	—	—

















oil well , water well ,  geothermal well ,  sewage and industrial wastewater disposal plants,

food equipment, liquids filtration,cleaning treatment
