Diameter:
Material:
Slot:
End Connection:
thickness:
NPT End Fittings wedge wire screen filter Element are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.
The main part of the MNPT wedge wire screen filter element is the filtering part. It is made of stainless steel wedge wire. Because it is designed by Johnson. So it is also called Johnson screen. Until now. it has many different names. Wedge wire screen , slot tube, filter screen ,wedge wire mesh, wedge wire filters, johnson screens, micro screen, pipe screen, filtration element.
|
No. |
(mm)TYPE |
OD (mm) |
ID(mm) |
Support wire Number |

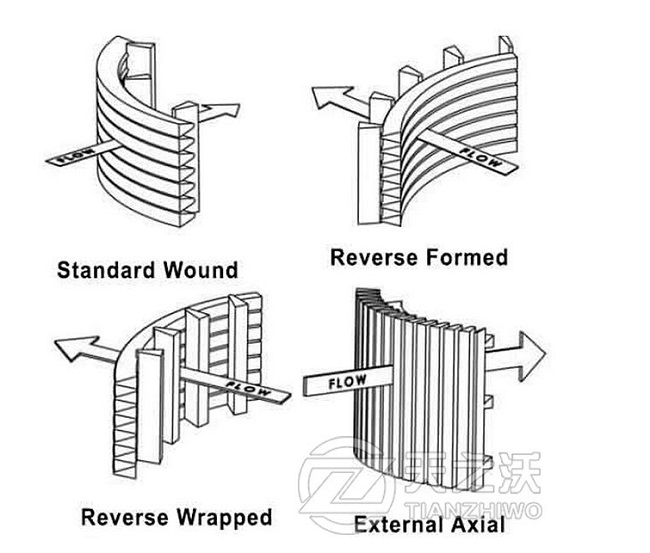

Filter direction |
|
|
|||||
|
1 |
SRD25.4 |
25.4 |
18.6 |
12 |
FOTI |
|
2 |
SRD 33 |
33 |
24 |
8 |
FOTI |
|
3 |
SRD 37 |
37 |
28 |
8 |
FOTI |
|
4 |
SRD 40 |
40 |
31 |
8/10 |
FOTI/FITO |
|
5 |
SRD 45 |
45 |
36 |
10/12 |
FOTI/FITO |
|
6 |
SRD 48 |
48 |
38 |
12 |
FOTI/FITO |
|
7 |
SRD 60 |
60 |
51 |
12 |
FOTI/FITO |
|
8 |
SRD 70 |
70 |
61 |
12/18 |
FOTI/FITO |
|
9 |
SRD 85 |
85 |
76 |
18 |
FOTI/FITO |
|
10 |
SRD 110 |
110 |
101 |
24 |
FOTI/FITO |
|
11 |
SRD120 |
120 |
111 |
24 |
FOTI/FITO |
Coal/coke washeries - Seperationn Machine component / Wedge wire screen Filter mesh
Sugar mill- Seperation or Filtration component
Chemical and petrochemical- Hydro treating Filtering element / Filtration component
Soda ash plants- Seperation or Filtration component
Fertilizer plants- Seperation or Filtration component
Cement plants- Seperation or Filtration component
Solvent extraction plant- Filtering element / Filtration component
Effluent/water treatment plants - Filtering element / Filtration component
Stone quarrys - Seperation or Filtration component
Paper and pulp industries - Seperation or Filtration component/ Self-cleaning Single Filter
Food processing industries- Seperation or Filtration component / Back flushing cleaning Filter
Beer & Beverage Industries -Filtering Element or FitrationElement
Henan Tianzhiwo Machinery Co.,Ltd provides value-added high precison Wedge wire screen products and services to global clients in various industries. We learned advanced production experiences , our company has advanced production technology and innovative design. We can provide global client first- class filtration products. Until now, tianzhiwo is the only one in China who can manufacture wedge wire screen pipe perfect round with smooth surface . Our products quality is far higher than that is from similar suppliers in china. We are expert at making small diameter wedge wire screen. And we concentrate on the products quality . The first-class quality and service is our constant commitment. Our aim is to be the leader in the filtration industry in China.
