Diameter:
Material:
Slot:
End Connection:
thickness:
Product Description of Johnson Wedge Wire Screen Tube
|
|

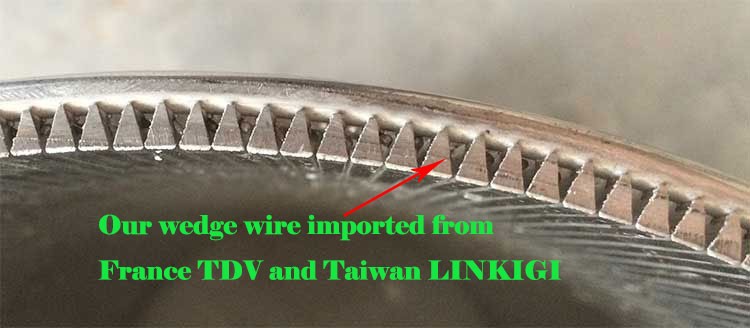

Material: wedge/ vee shape stainless steel wire(304/ 316/316L) Wedge wire: Imported from France and Taiwan Width(mm): 0.75 1.00 1.50 Length(mm): According to customer's requirement Tolerance of slot: ±0.5 Efficiency: High Filter fineness: 15-800µm
|

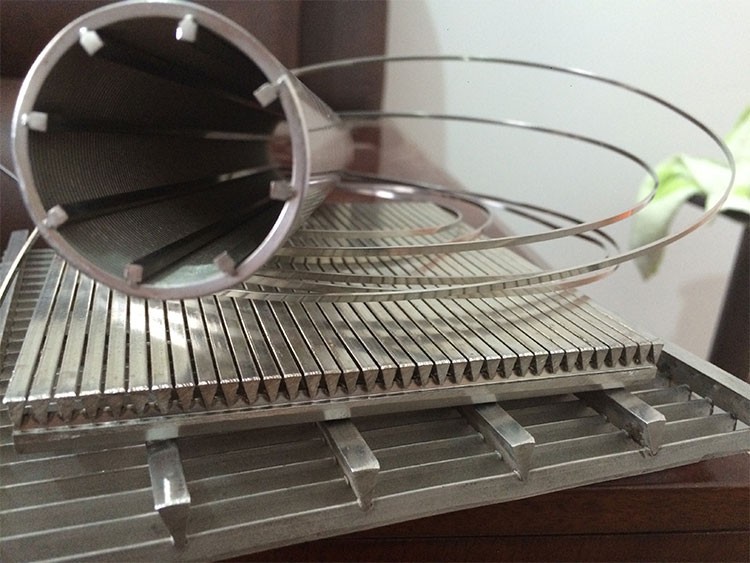

Wedge wire fillter are welded structures with the support profiles being rods in the axial direction of the tube and surface profiles spirally wound around the support profiles.
Our wedge wire filter are manufactured directly on a machine.They have the unique advantage of very accurate, narrow slot openings and perfect roundness all in one.
|
Profile combinations
Diameters

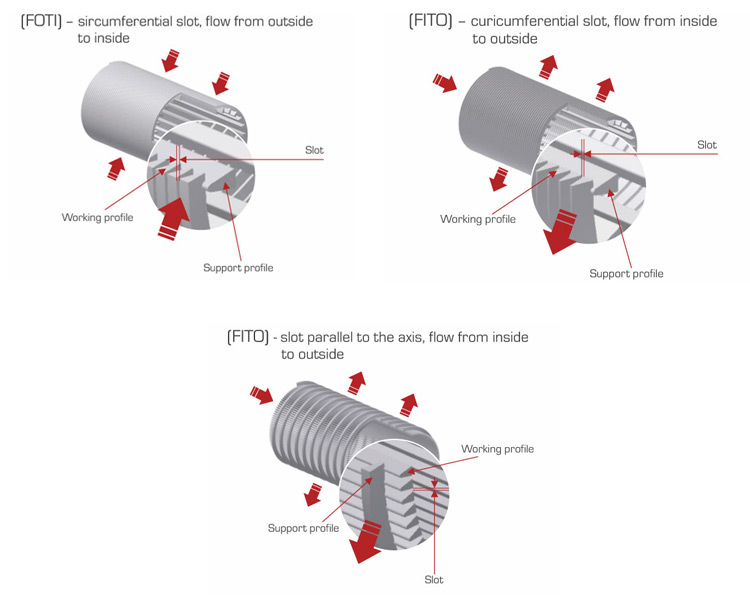

Filtrations Direction The direction of the flow is determined by the position of the surface profiles in relation to the support profiles. Wedge wire screens are either flow-out-to-in (FOTI) or flow-in-to-out (FITO)
Hightop has professional team to check customer's drawing, and will design the drawing as your requirement for confirmation. Hightop will serve customers by our professional.
|
Quick Details
|
Place of Origin: |
Henan, China (Mainland) |
Brand Name: |
TIANZHIWO |
Model Number: |
28mm |
|
Usage: |
Liquid Filter |
Type: |
Filter Elements, Flat screen, slot tube, cylinder,basket |
Material: |
Metal, 304,316,316L stainles steel |
|
Hole Shape: |
Round, slot |
Filter Rating: |
≥95 |
Thickness: |
6-12mm |
|
Length: |
6m |
Width: |
none |
High temperation: |
1700° |
|
Use: |
Filtration industry, Architecture |
Quality: |
ISO |
Type of company: |
Real factory |
|
Opening: |
0.25mm |
Sample: |
Free |
Packaging & Delivery
|
Packaging Details: |
Bubble bag - Carton Box - Wooden Pallet |
|
Delivery Detail: |
5-15days |
Welded wedge filter Application
