Diameter:
Material:
Slot:
End Connection:
thickness:
Johnson Wedge Wire SS water filter also named Wedge Wire Screen, Screen Pipes , All welded continuous slot screen, water treatment sieveve.

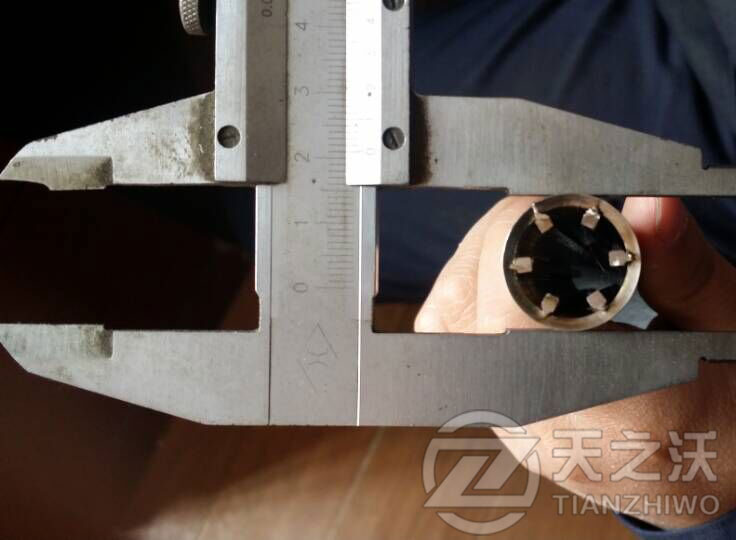

Wedge wire water screen is composed of a surface profile that is spirally wrapped around axial support profiles and attached to each other by resistance welding.
Tag:
Wedge Wire Screen Cylinders
Reversed profile wire screen cylinder
|
SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Weight (ton) |
Wire siz (mm) |
RODS (mm) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/50 |
Johnson Wedge Wire SS water filter can be used in food processing, waste water filtration, pulp and paper as well as mineral processing applications.
