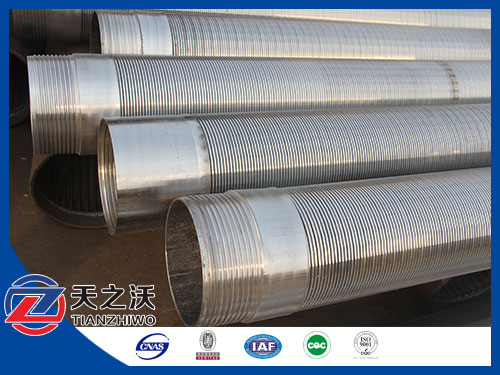

1.wedge wire screen consist of V-shape profile wire and the longitudinal support rods.
Each intersecting point of these wires is fusion welded of water well screen.

2.So it has sturdy constriction and good mechanical property.

3.the V-shape section plane can avoid blockage and make sure of the unimpeded water.
the consecutive slot have more open area, and water well screen  can reduce
the speed of the water entering to avoid the sand entering the screen under the great pressure

4.so it can filter sand better. meanwhile ,the slot can change according to the real condition of the earth.

Tag:Johnson Wedge Wire SS water filter

Screen Size		Inside Diameter		Outside Diameter		OD of Female  Threaded End
in	mm	In	mm	in	mm	In	mm
2	51	2	51	25/8	67	23/4	70
3	76	3	76	35/8	92	33/4	95
4	102	4	102	45/8	117	43/4	121
5	127	5	127	55/8	143	53/4	146
6	152	6	152	65/8	168	7	178
8	203	8	203	85/8	219	91/4	235
10	254	10	254	103/4	273	113/8	289
12	305	12	305	123/4	324	133/8	340
14	356	131/8	333	14	356	—	—
16	406	15	381	16	406	—	—
20	508	18 3/4	476	20	508	—	—

















Wedge wire screen has been known as the world's leading manufacturer and provider of industrial filters
and water well screens since 1904.We provide screening solutions to almost every industry,including:
·Architecture & Construction
·Food & Beverage Screens
·OEM Screen Components
·Refining & Petrochemical
·Waste Water Treatment
·Water Well & Oil well
·Coal & Mine
