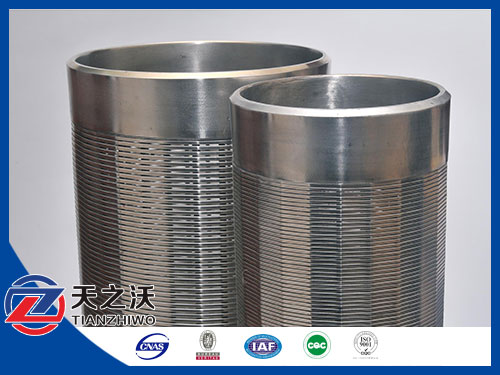

1.Wedge wire screen is made up of rods and profile wire.
2.The rod can be round wire,triangular wire or trapezoid wire
3.The profile wire is triangular wire (V-shaped wire).Wedge wire screen has a structure and high open area,as well as accurate slot dimension.
4.At the same time,water well screen have heat-resisting,anti-corrosive,good machine capability,last long,safety and reliability and so on characteristics.

Technical data of Wedge wire screen


No.	(mm)TYPE	OD (mm)	ID (mm)	Support wire Number	Filter direction
1	SRD25.4	25.4	18.6	12	FOTI
2	SRD 33	33	24	8	FOTI
3	SRD 37	37	28	8	FOTI
4	SRD 40	40	31	8/10	FOTI/FITO
5	SRD 45	45	36	10/12	FOTI/FITO
6	SRD 48	48	38	12	FOTI/FITO
7	SRD 60	60	51	12	FOTI/FITO
8	SRD 70	70	61	12/18	FOTI/FITO
9	SRD 85	85	76	18	FOTI/FITO
10	SRD 110	110	101	24	FOTI/FITO
11	SRD120	120	111	24	FOTI/FITO

Remarks:
1. Make tubes with different material according to user requirements.
2. Slot should be bigger than 0.020mm and less that 2500mm long.

used for drilling oil well , water well ,  geothermal well ,  sewage and industrial wastewater disposal plants,

food equipment, liquids filtration,cleaning treatment
